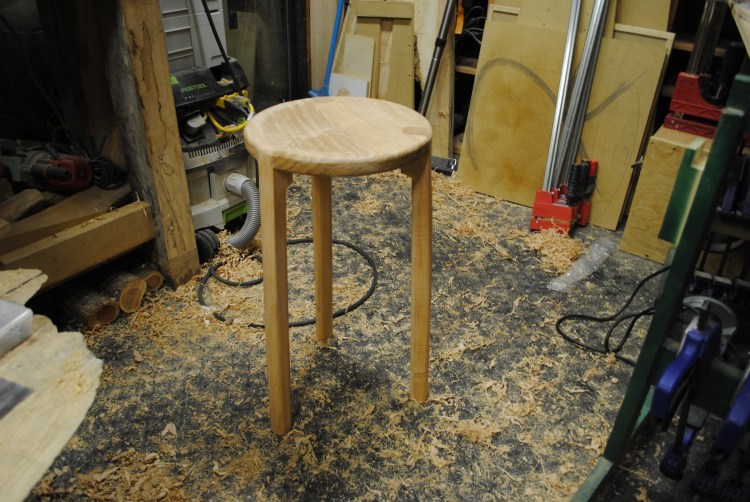

My stool is 24-1/2″ high. The seat is 13″ diameter and the legs are splayed, so the footprint is 16″.
I used Western maple for the legs and butternut for the seat.
I had originally intended to angle the legs so they crossed in the middle (Plan B), but I didn’t cut them at the right angle, so the footprint ended up being too small. I ended up cutting off the angled tops and using straight legs instead – my Plan A.5, as I called it.

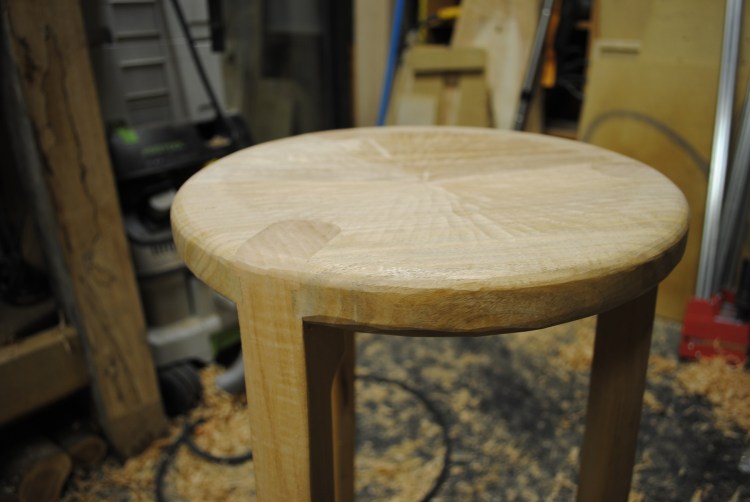

I used dado and rabbet joinery to connect the legs to the seat, which I shaped into a concave shape with a carving gouge. I left the texture of the carving gouge on the surface for decoration. It does not detract from the comfort. The stool is very solid and comfortable. Although I was initially disappointed that my crossed-leg design didn’t work out this time, I am very happy with the result.
It was a lot of fun to be a part of this!
