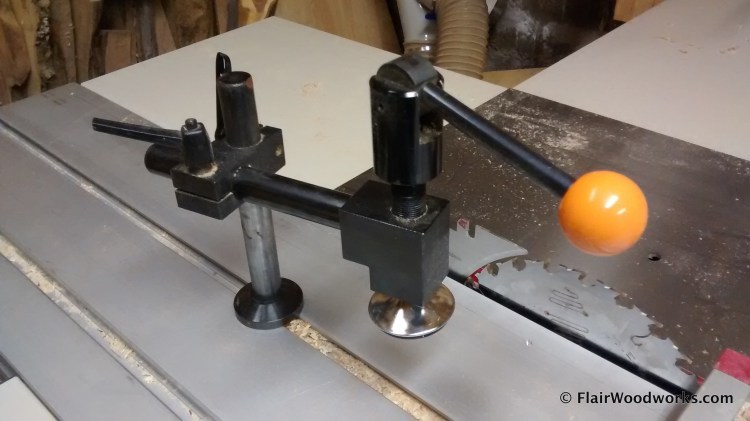

Cam-Action Hold-Down for Grizzly G0623X Sliding Table Saw

When I bought my sliding table saw, I wanted to get a material hold-down for the sliding table. Such an accessory did not exist for the saw, but another Grizzly sliding table saw with the same T-slot size came with one. I ordered the individual replacement parts for the hold-down and put it together myself. These parts cost me $210.50 when I ordered them in 2010.

Quantity

Part Number Description

1

PN02 Hex Nut 5/16-18

1

PR03M Ext Retaining Ring 12mm

1

PRP32M Roll Pin 6×40

1

P04510215 T-Nut M12-1.75 V1.04.05

1

P04510616 Ball Knob M8-1.25

1

P04510617 Handle Shaft

1

P04510618 Cam

1

P04510619 Cam Bracket

1

P04510621 Locate Block

1

P04510623 Compression Spring

1

P04510624 Shaft

1

P04510626 Washer Large

1

P04510627 Shaft

1

P04510628 Handle Shaft V1.04.05

2

P04510629 Lock Handle

1

P04510630 Block

1

P04510631 Disc Gasket

5 thoughts on “Cam-Action Hold-Down for Grizzly G0623X Sliding Table Saw

  1. Brilliant, Chris!

    I don’t have a TS anymore, but conceptually, I can see something like that being useful in other places. Maybe a custom table with a T-slot let into it on a bench press? I’m always trying to figure out how to clamp stuff down before I drill (what? Some people really do clamp things down at the drill press!).

    I suppose someone probably makes something like that commercially, if I could be bothered to look for it…

    • Hi Ethan,

      You’re right – drill press tables don’t make it easy to secure work. This one is probably too tall to be of much use, but a low-profile clamp could be just the ticket!

      Chris

  2. Hello Chris,

    Thanks for your speedy response. Was there a reason you chose to purchase all the parts individually when there seems to be the same style hold down clamp completely assembled from the sliding table saw G0699 part # P06991407? It cost $120.00. My only concern with it is that the T will fit my miter slot. Grizzly said they don’t know.

    • Hi Andry,

      If that assembled hold-down clamp was available separately when I purchased my saw, I wasn’t aware of it. When I ordered my saw from the Bellingham Grizzly showroom, I was able to confirm that the hold-down I ended up ordering would in fact fit the G0623X T-slots.
