Router Collets Provide a Firm Grip

A collet is something that most of us take for granted.  Besides knowing that it is sized to hold the bit, what else is there to know?  Recently, I took the time to have a closer look at collets… after I dropped one on the floor…

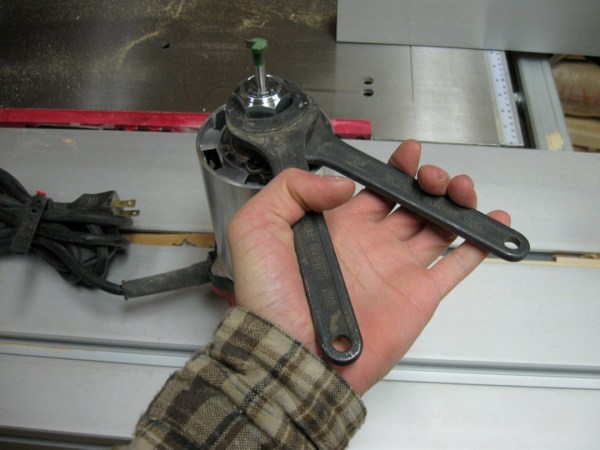

Most routers sold today come with a self-releasing collet.  This is a great feature that should not be taken for granted.  When removing a router bit from a self-releasing collet, first use the wrench(es) to loosen the collet.  Some routers use two wrenches, others use one wrench and an arbor lock, and some give you both options.  After using the wrenches, you will be able to continue loosening the collet by hand.  Then the collet will lock up again and you will need to use the wrenches again.  This is the self-releasing feature.  To understand why the threading seems tight, loose, then tight again, we need to have a closer look at the design of the collet.

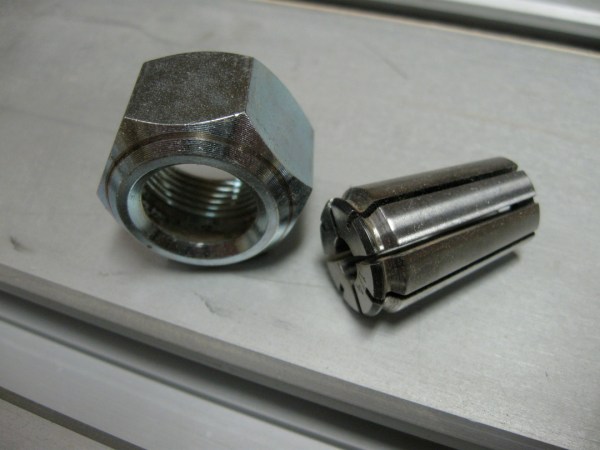

When I retrieved the collet from the ground, I found two pieces: the collet nut (left) and the collet.

The collet nut has threads on the inside that match the threads on the outside of the router’s spindle.  As the collet nut is tightened on the spindle, it forces the collet down with it.  Most router collets have six flats on the outside for convenient use with the wrench(es) provided with the router.

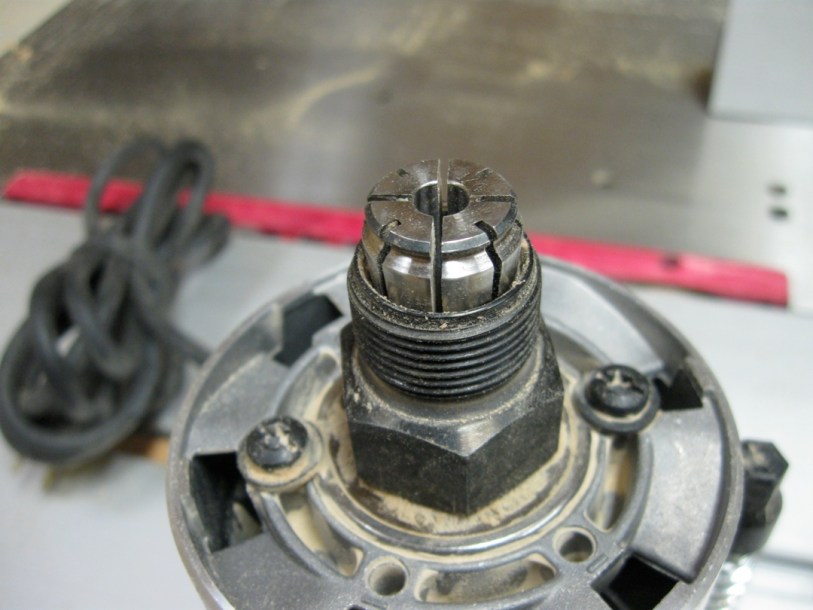

The collet has a round bore in the center equal to the diameter of the shaft it is designed to hold (commonly 1/4″, 8mm, or 1/2″) and one or more slits along the length to allow it to expand and contract.  The body is tapered so as it is pushed down the router’s hollow spindle, the hole in the center closes, securing the bit.

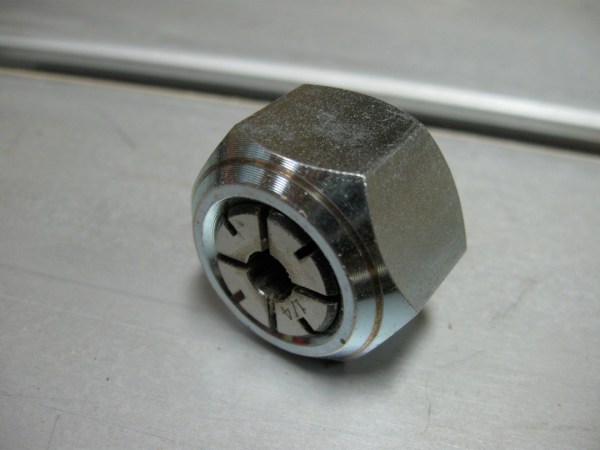

What makes it a self-releasing collet is the V-shaped groove around the edge of the collet near the wide end.  There is a matching shape on the inside edge of the collet nut and as I press the collet into the collet nut, I hear a click.

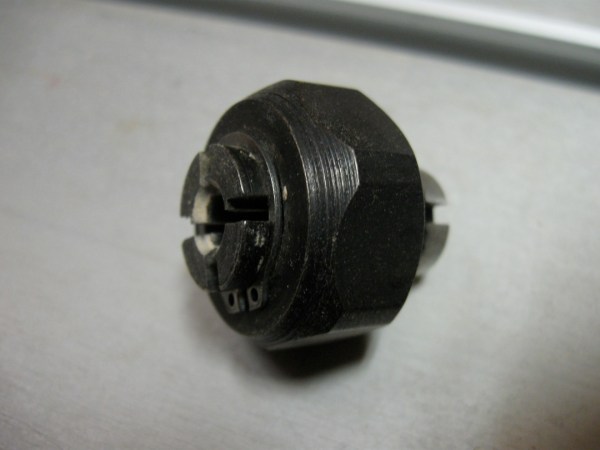

Another design of a self-releasing collet uses a spring clip to lock the collet into the collet nut.  An advantage of this is that the two parts won’t separate when you drop them.

Let’s go back to the example of removing a bit.  When we first need to use wrenches, we are unthreading the collet nut and separating it from the collet that remains firmly lodged in the router spindle due to the taper.  Once we break the collet nut free, it can be turned by hand until the inside edge of the collet meets the V-shaped groove (or spring clip) around the edge of the collet.  Then, wrenches are needed again to pull the collet out of the spindle.  By the way, don’t bother to put the collet in the spindle without the collet nut as it is difficult to remove.  Trust me on this.  (There is absolutely no use for this except a photo-op).

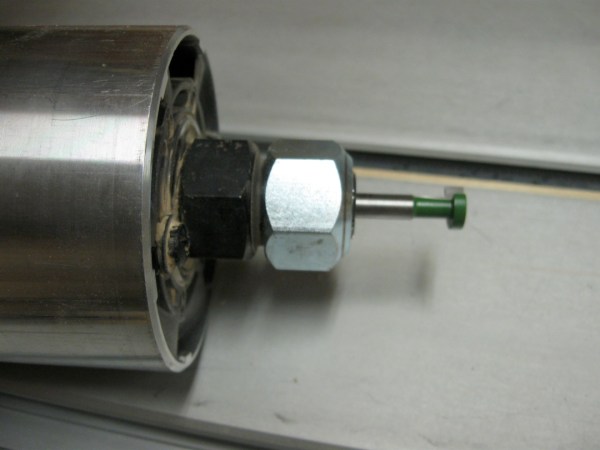

To install a bit in the router, first thread the collet on by hand until you meet resistance.  (It is ill-advised to tighten an empty collet as you may cause damage).  Then insert the bit.  The general rule of thumb is to insert at least twice as much of the bit’s shank as the bit’s diameter.  For example, if you are using a 1/2″ shank bit, aim to have at least 1″ inside the collet.

If the bit slides freely in the collet, making it difficult to tighten the bit with the desired projection, try either tightening the collet a little more before inserting the bit or laying the router sideways.

Finally, tighten the collet using the wrench(es).  If two wrenches are required, try positioning them so the handles are a few inches apart and squeezing them together using one or two hands.  Keep your fingers and thumbs on the outsides or else you risk pinching them.  This is more dangerous when loosening the collet and the resistance can suddenly disappear.

Tightened well, collets provide a secure clamping force that also ensures that the round item is centered perfectly.  I’ve only once had a bit slip in a collet.  It was a 1/4″ spiral up-cut bit and I hadn’t tightened it properly.

Other places you might find a collet in your shop include rotary tools and precision lathes.

3 thoughts on “Router Collets Provide a Firm Grip

  1. Thanks for the explanation of collets. Although I knew most of it intuitively and from experience, the details you provided enhanced my understanding and I appreciate your taking the time to write it up.

    Safety first,
    Mike

  2. Like an idiot who hasn’t used a router in a while I tightened the spindle nut way too tight and nothing I try will loosen it. It does not have two nuts but a collet (?) which holds the nut in place once tightened normally. However it is so tight I cant move the collet. At the end of my rope here.

    • Hi Tom,

      Sometimes things magically tighten themselves. Earlier this week I was marvelling at how much effort I had to use to loosen something that a minute earlier I had just casually tightened. Could you take a picture of your situation and e-mail it to me? My e-mail address is: Chris@FlairWoodworks.com

      Chris
