Squirrel-Tail Palm Plane

I have many hand planes, but this Squirrel-Tail Palm Plane is among my most-used.

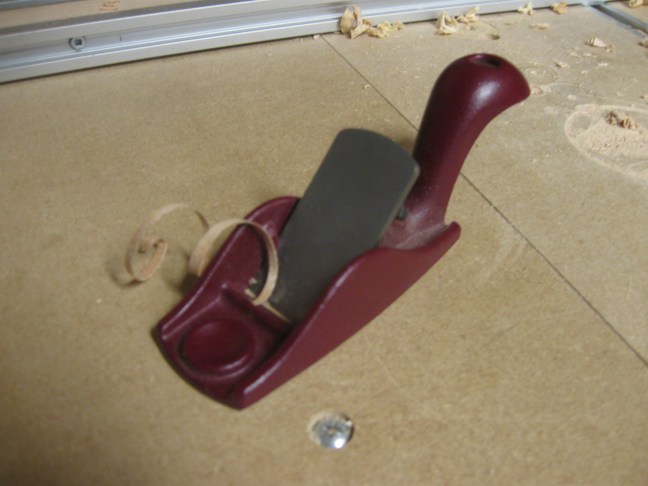

Squirrel-Tail Palm Plane

This plane is a very simple tool.  The investment-cast steel body incorporates a squirrel-tail handle that nestles in my palm and a divot on the toe where I can set my index finger.  The mouth width is non-adjustable.  Both the plane’s sole and blade’s back are lapped flat, making set-up of the tool easy.  Adjustments to the projection and skew of the blade are best done with light hammer taps and it is secured with a cogwheel screw.

I use this plane exclusively for rounding over and chamfering edges, so I set the blade of this plane much like I do for my spokeshave when working on rounded parts.  Instead of setting the blade so that it projects evenly on each side, I intentionally skew the blade, giving me a variable depth of cut.  This way, I can quickly begin to establish the round-over or chamfer using the left side of the blade.  Then, by simply sliding the plane sideways to engage the other edge of the blade, I can fine-tune the shape.  No adjustments are required.

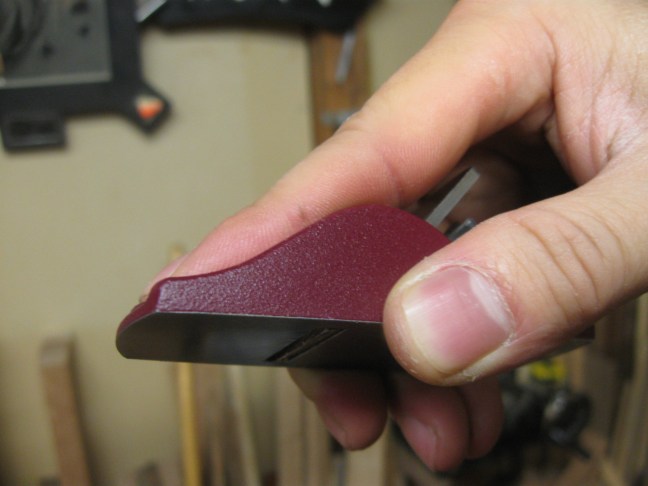

I chose this plane for the task because it is small and lightweight, which allows an easy, one-handed grip.  This is how I grip the plane.

Having a small plane dedicated to chamfering and rounding over edges is certainly not necessary, but it is very convenient.

One thought on “Squirrel-Tail Palm Plane

  1. Good to know you use it a lot. It has been on my LV ‘s “Purchase Later” list for some time…there’re still a few other planes the plow, e.g.) ahead of it on the list.
