Assembling Puzzle Table

After a week making the inside surfaces glossy and blue, I was back to making sawdust.

I mitred the ends of the panels with my sliding table saw, using a stop block to ensure that they were all the same length. I appreciated the fact that my carefully-painted surfaces were able to just sit on the sliding table and glide past the blade, rather than be pushed across the table and risk scratching them.

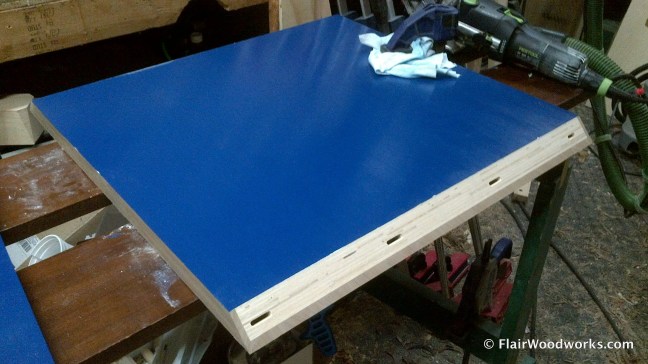

Puzzle Table5To make assembly easier, and for reinforcement, I cut mortises in the mitres with my Domino Joiner.

Puzzle Table6 Using Domino floating tenons, all I had to do was get them started in the mortises, then use a mallet to drive the parts together.  Alignment was guaranteed.

Puzzle Table7

The floating tenons are strong, too! I first assembled the sides in pairs.

Puzzle Table8 Then I put the two halves together and clamped the entire assembly with web clamps.

Puzzle Table9

It was really exciting to get to this stage, but the next stage is pretty exciting too – cutting the puzzle pieces!
