Fast-Action Clamp for Crosscut Fence

A reader recently inquired about the method I use to secure the crosscut fence to my sliding table saw. Grizzly provides a knob with a long male thread to pass through the slot in the outrigger and into the bottom of the crosscut fence. This is secure, but slow to remove when taking off the crosscut fence.

Crosscut Fence Clamp3

For a more convenient solution, I mounted a toggle clamp on a riser block. A large-head, 1/4″ bolt, threaded into the bottom of the block, rides in the bottom T-slot of the crosscut fence and a rubber bumper positions the pressure pad of the clamp solidly on the outrigger.

Crosscut Fence Clamp1 This is what the clamp looks like holding the crosscut fence in place.

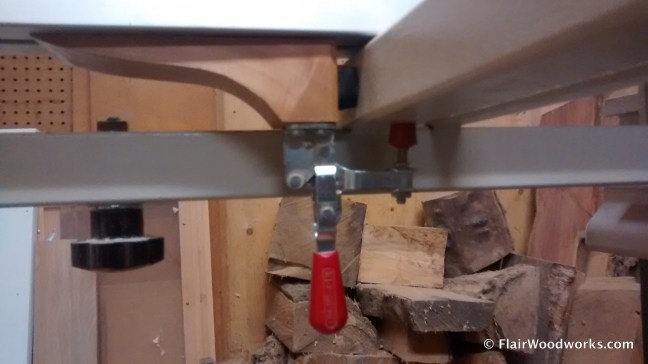

Crosscut Fence Clamp2 While not quite as secure as the original bolt, this solution makes it considerably easier to adjust, remove or install the crosscut fence.

Here are some more photos of the clamp on its own.

Crosscut Fence Clamp4 Crosscut Fence Clamp5
