Wall Brackets for Hollow Chisel Mortiser

Yesterday, at 2:05 pm, I decided that I needed to get my benchtop mortiser off my bench.  I documented the process of building and mounting wall brackets live on Twitter and what you see below are the updates.  This was useful because each update had a time stamp so followers could see the rate at which I progressed.

(If you are not familiar with the format used on Twitter, the @ symbol indicates a username.  Every update, or “tweet” below starts with a username and they are the author of that tweet.  Sometimes, you will see two or more usernames in a tweet.  The second (and third, etc) usernames are people to whom the author is talking.  The other symbol you will see is #, which serves as a category.  I tried to remember to categorize all my tweets pertaining to this project under #flairww.)

@FlairWoodworks: I need a pair of brackets to mount my mortiser on the wall here. Follow along with #flairww
January 10, 2012, 2:05 pm

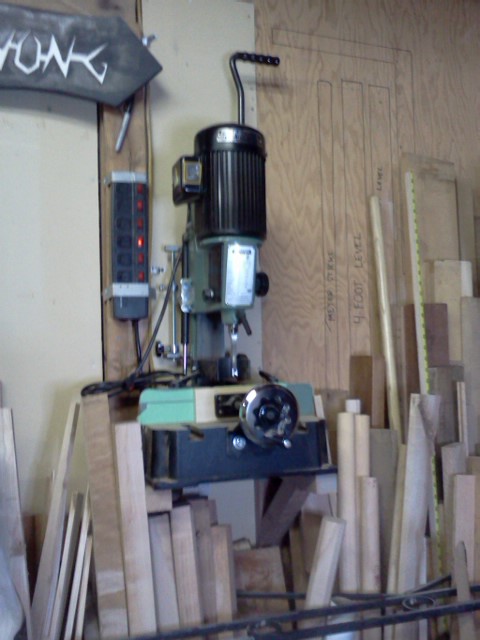

@FlairWoodworks: This is my mortiser. #flairww
January 10, 2012, 2:06 pm

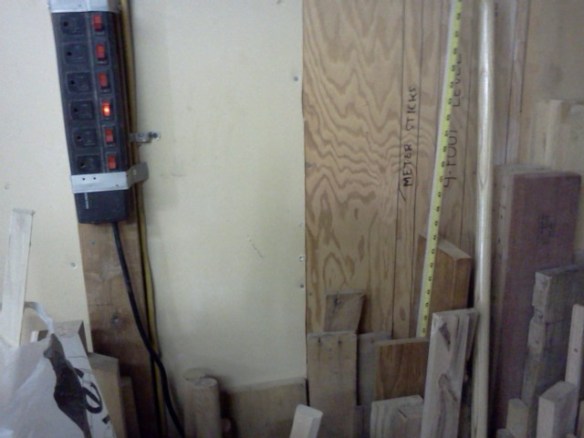

@FlairWoodworks: These are some hardwood scraps I had in the shop. The wood on the right is interesting but there isn’t enough. #flairww
January 10, 2012, 2:13 pm

@FlairWoodworks: I use a short fence on my sliding tablesaw to cut the parts to length. #flairww
January 10, 2012, 2:17 pm

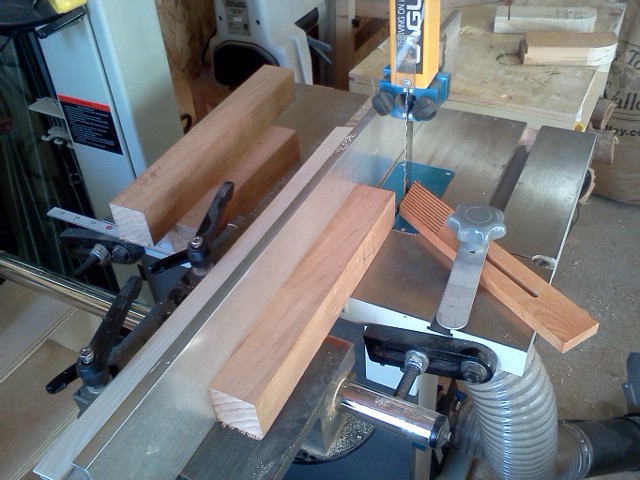

@FlairWoodworks: I used the jointer to flatten one face, then used the bandsaw to make the other face parallel. #flairww
January 10, 2012, 2:22 pm

@FlairWoodworks: I used the smallest of my seven bench planes to clean up the bandsawn surfaces. This wasn’t really necessary though.
January 10, 2012, 2:34 pm

@FlairWoodworks: I dry-fit the bracket and marked the cuts for the cross-brace. #flairww
January 10, 2012, 2:38 pm

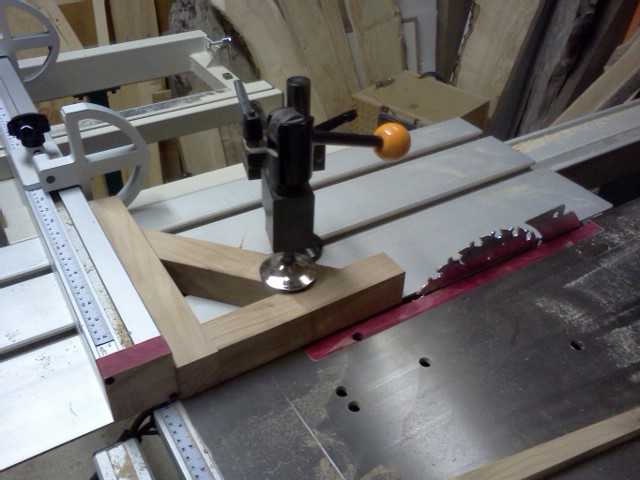

@FlairWoodworks: Some of the cuts for the cross braces were angles greater than 45 degrees. This is how I cut them. #flairww
January 10, 2012, 2:50 pm

@DyamiPlotke: @FlairWoodworks great, simple strategy.
January 10, 2012, 2:50 pm

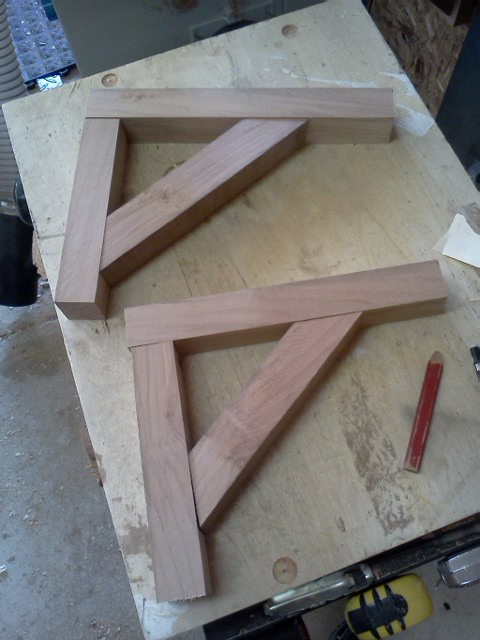

@FlairWoodworks: Here’s your first look at what they will look. #flairww
January 10, 2012, 2:52 pm

@FlairWoodworks: I’m using 8mm Dominoes for the joinery so I had to switch the bits from the last time I used the Domino Joiner. #flairww
January 10, 2012, 2:56 pm

@FlairWoodworks: To get this mortise accurately cut, I clamped a stop 10mm down from the centerline. #flairww
January 10, 2012, 3:08 pm

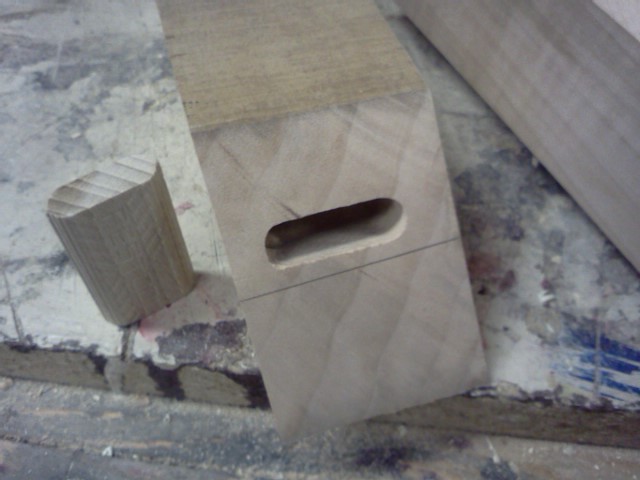

@FlairWoodworks: I forgot to readjust the depth setting for the angled ends. I’ll plug this cavity with a Domino and try again. #flairww
January 10, 2012, 3:14 pm

@FlairWoodworks: One glued up! #flairww
January 10, 2012, 3:26 pm

@FlairWoodworks: I use Extractor nail pullers to remove the Dominoes after dry-fitting. #flairww
January 10, 2012, 3:41 pm

@DyamiPlotke: @FlairWoodworks good idea. I use pliers.
January 10, 2012, 3:55 pm

@FlairWoodworks: @DyamiPlotke The jaws of the Extractors remain parallel for a better grip.
January 10, 2012, 3:56 pm

@DyamiPlotke: @FlairWoodworks yeah. I’ll try an extractor next time.
January 11, 2012, 4:00 pm

@FlairWoodworks: The glue is dry now so it’s time to continue making the brackets for wall-mount the hollow chisel mortiser.
January 11, 2012, 5:20 pm

@FlairWoodworks: The next step is to flush up the joints. #flairww
January 11, 2012, 5:22 pm

@FlairWoodworks: If the brackets are out of square, I use the tablesaw to cut them square. #flairww
January 11, 2012, 5:34 pm

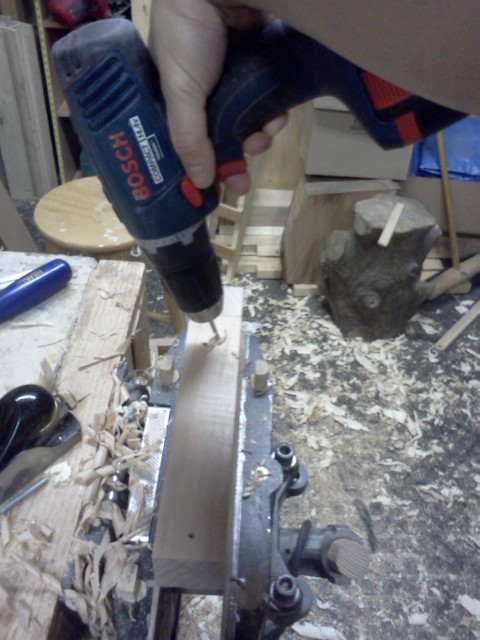

@FlairWoodworks: I drilled two angled holes at the top and one straight at the bottom. #flairww
January 11, 2012, 5:45 pm

@FlairWoodworks: I attach one bracket at the measured height on the wall and use a level to determine the vertical placement of the second.
January 11, 2012, 5:58 pm

@FlairWoodworks: Finally, I hefted the mortiser onto the brackets and bolted it down. #flairww
January 11, 2012, 6:16 pm

@woodbard: @FlairWoodworks Well done, Chris! The mortiser has found a permanent home, out of the way of other tools. Support planned for long boards?
January 11, 2012, 6:20 pm

@FlairWoodworks: @woodbard And it only took two months! When I need outfeed support, I will probably just set up a sawhorse.
January 11, 2012, 6:24 pm
