Maple Trestle Table, Session 25 – Completing the Bottom Edge

On the morning of Sunday, April 15th, Morton and I exchanged ideas about trestle tables, spurred on by a recent sketch of a table on which he was working.  That got me yearning to build a trestle table.

I documented my progress live on Twitter which was useful because each update had a time stamp so followers could see the rate at which I progressed.  Here is a list of the previous Sessions:

Session 1 – Flat Boards are Boring;
Session 2 – Playing with Slabs;
Session 3 – From Two Slabs to One Table Top;
Session 4 – Clamping Odd Shapes and Sketching on Wood;
Session 5 – Routing Pockets for Battens;
Session 6 – Making Battens and Installing Countertop Connectors;
Session 7 – Installing Battens and Flattening the Underside;
Session 8 – Make Your Tools Work for You and Flattening the Top;
Session 9 – Mortises the Slow Way (or Why I’m Buying a Domino XL);
Session 10 – Curvy Legs are Always Good;
Session 11 – Straight Lines on Wonky Surfaces;
Session 12 – Fitting the Mother of all Mortise & Tenon Joints;
Session 13 – Making Things Better, Worse, then Better;
Session 14 – Battens and Complicated Tenons, Again;
Session 15 – The Trestle Comes Together Session;
Session 16 – Angled Mortises and Tenons;
Session 17 – Two Feet for Two Legs;
Session 18 – Attachment Strips and Power Carving;
Session 19 – Refining the Sculpted Base;
Session 20 – A Little Sanding, then Lots More Sanding;
Session 21 – Preparing for a Big Glue-Up;
Session 22 – Fitting and Joining the Table Top;
Session 23 – The Bottom of the Top; and
Session 24 – Profiling the Table’s Edge.

(If you are not familiar with the format used on Twitter, every update, or “tweet” below starts with a username, being the author of that tweet.  Sometimes, you see two or more usernames in a tweet.  The second (and third, etc) usernames are preceded by a @ symbol and are people to whom the author is talking.  The other symbol you see is #, which serves as a category.  I try to remember to categorize all my tweets pertaining to this project under #flairww.)

FlairWoodworks Time to get some work done on the Maple Trestle Table! #flairww -10:24 AM Jun 3rd, 2012

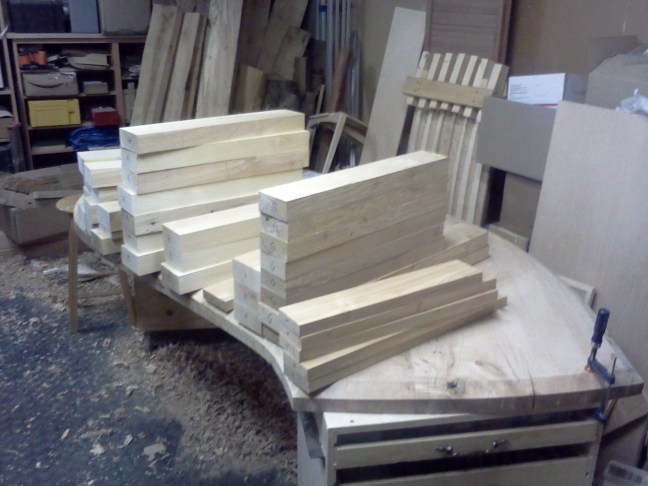

FlairWoodworks The table is here somewhere under all this yellow birch#flairww -10:28 AM Jun 3rd, 2012

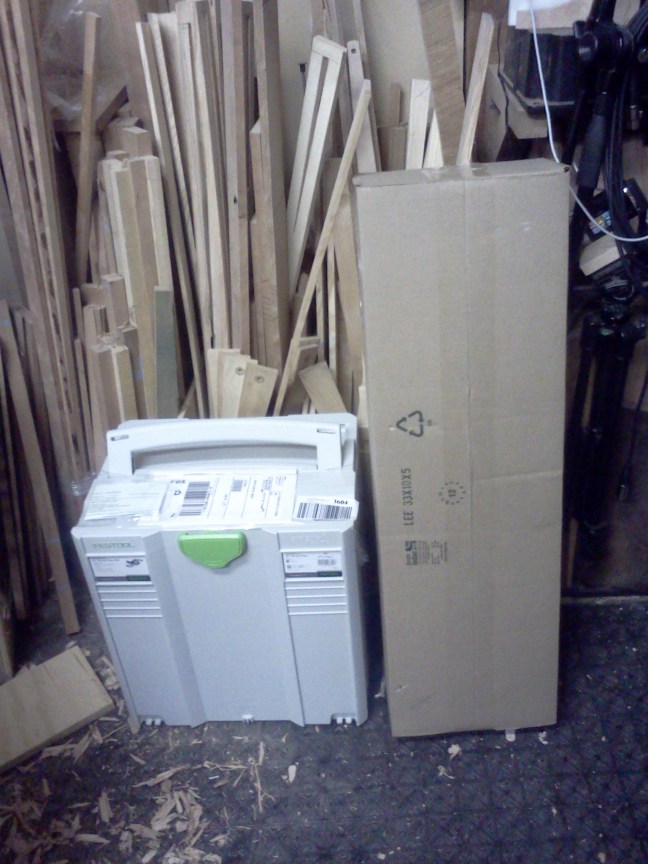

FlairWoodworks I picked up my Domino XL June 1st. It’s still in the box, unopened. The tenon stock is in the other box. #flairww -10:32 AM Jun 3rd, 2012

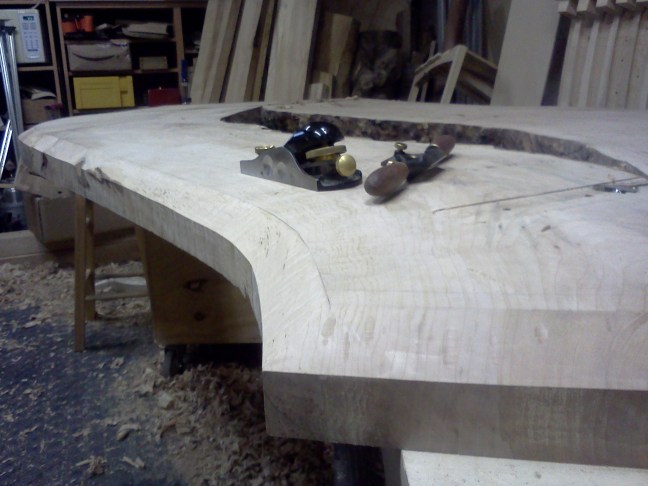

FlairWoodworks To start, I’m going to use my block plane and spokeshave to transform the wide bevel into a roundover. #flairww -10:53 AM Jun 3rd, 2012

FlairWoodworks I first added a low bevel along the edge. #flairww -10:57 AM Jun 3rd, 2012

FlairWoodworks Then, just a little more work with my spokeshave finished shaping this section of the roundover. #flairww -11:00 AM Jun 3rd, 2012

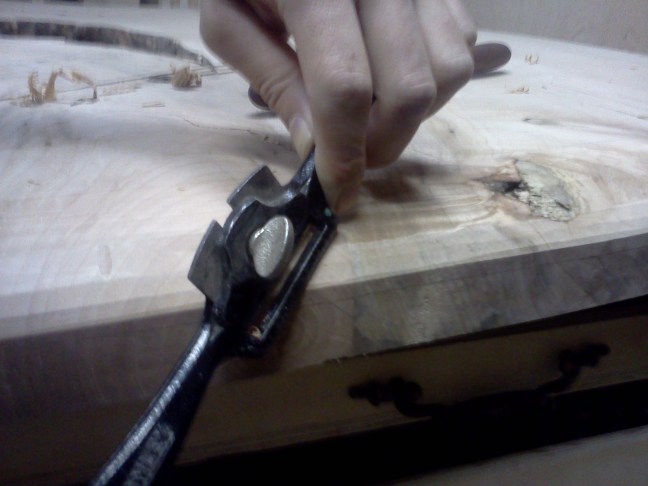

FlairWoodworks I push my spokeshave across the endgrain at a skewed ange for a clean cut. #flairww -11:07 AM Jun 3rd, 2012

roncbailey @FlairWoodworks good to see new photos. I was missing the updates. Can’t wait to see it finished -11:16 AM Jun 3rd, 2012

FlairWoodworks I agree on all points! RT @roncbailey: @FlairWoodworks good to see new photos. I was missing the updates. Can’t wait to see it finished -11:17 AM Jun 3rd, 2012

FlairWoodworks The toe of my spokeshave is too hot to comfortably hold from the friction produced by running it over the wood. #flairww -11:22 AM Jun 3rd, 2012

FlairWoodworks I applied some Boeshield (lubricant) to see if that will reduce the friction which is causing the heat buildup. #flairww-11:23 AM Jun 3rd, 2012

FlairWoodworks The Boeshield did work to reduce friction and heat buildup, but I needed another application just now. #flairww -11:32 AM Jun 3rd, 2012

FlairWoodworks The difficult grain of this section prevented me from using my coarse spokeshave to establish the shape. #flairww -11:36 AM Jun 3rd, 2012

FlairWoodworks I was grateful that the remainder of the edge had milder grain so I could use my coarse spokeshave. #flairww -11:57 AM Jun 3rd, 2012

FlairWoodworks One long edge is now shaped. #flairww -12:08 PM Jun 3rd, 2012

FlairWoodworks Because you don’t have to worry about reversing grain, working end grain is sometimes easier than working long grain. #flairww -12:16 PM Jun 3rd, 2012

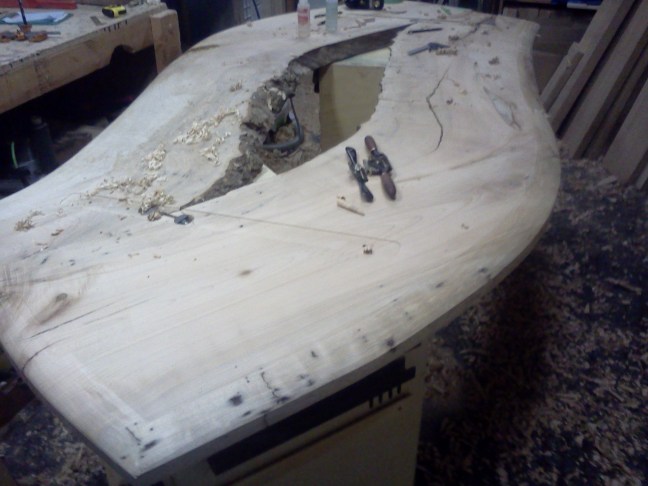

FlairWoodworks I’ve got the other end done. Just one long edge remains on the underside. #flairww -12:25 PM Jun 3rd, 2012

DyamiPlotke @FlairWoodworks is that the top? -12:36 PM Jun 3rd, 2012

FlairWoodworks This is the bottom. What do you think of the profile? Would you mirror it on top? #flairww RT @DyamiPlotke:@FlairWoodworks is that the top? -12:36 PM Jun 3rd, 2012

FlairWoodworks Before progressing to the last edge, I mixed some epoxy to fill and solidify this section. #flairww-12:37 PM Jun 3rd, 2012

FlairWoodworks Because of the depth of the void and the shrinkage of epoxy, it will need a second (and possibly third) application. #flairww -12:38 PM Jun 3rd, 2012

tsangell @FlairWoodworks I don’t detect any tint to the epoxy. If it’s clear, that’s also cool because you can see into the void.

FlairWoodworks @tsangell You are correct! #flairww -12:42 PM Jun 3rd, 2012

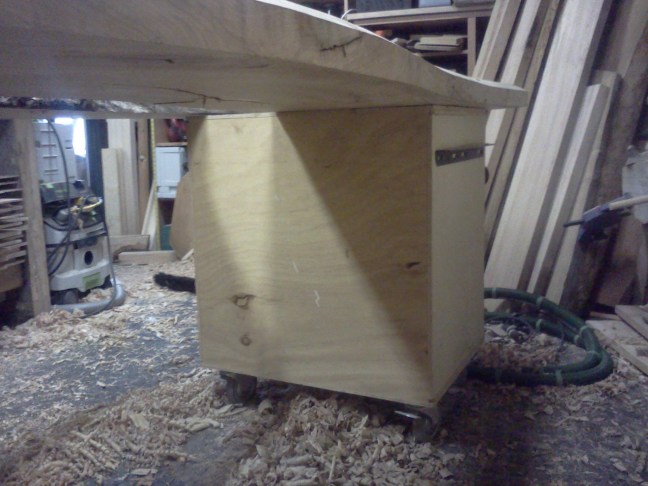

 FlairWoodworks The top sits on two cabinets with 4″ locking casters which allow it to be moved around with little effort. #flairww -12:43 PM Jun 3rd, 2012

FlairWoodworks However, when the casters are locked, everything becomes quite immobile. #flairww -12:44 PM Jun 3rd, 2012

DyamiPlotke @FlairWoodworks I like the profile for the bottom. For the top, it might make things prone to sliding off. -12:44 PM Jun 3rd, 2012

FlairWoodworks @DyamiPlotke My thoughts exactly! #flairww -12:44 PM Jun 3rd, 2012

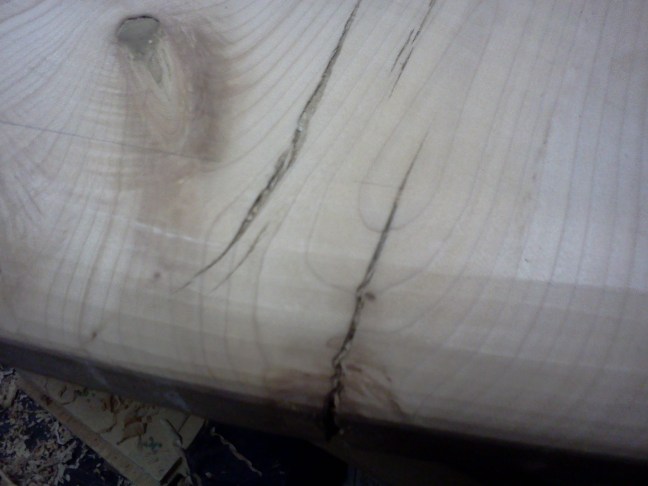

 FlairWoodworks I don’t see any need to fill these cracks with epoxy. #flairww -12:47 PM Jun 3rd, 2012

FlairWoodworks I’ve got the last edge roughly shaped. I’m switching to my fine spokeshave to refine the surface. #flairww -1:09 PM Jun 3rd, 2012

FlairWoodworks This is how I mix epoxy#flairww -1:21 PM Jun 3rd, 2012

FlairWoodworks All four edges of the bottom of the tabletop have been shaped. #flairww -1:23 PM Jun 3rd, 2012

FlairWoodworks I’m walking around the table, running my hand along the edge to feel for variations that need to be blended. #flairww -1:23 PM Jun 3rd, 2012

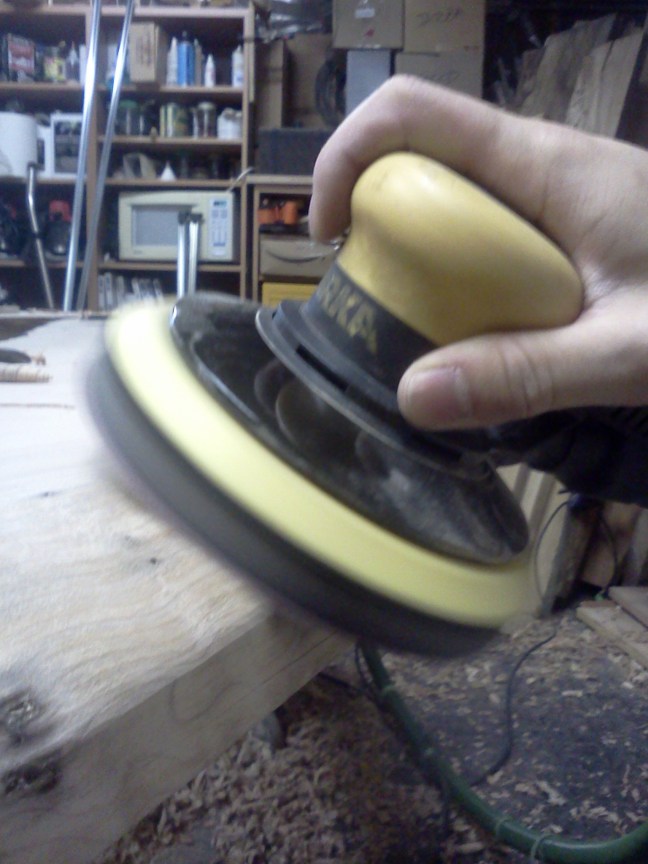

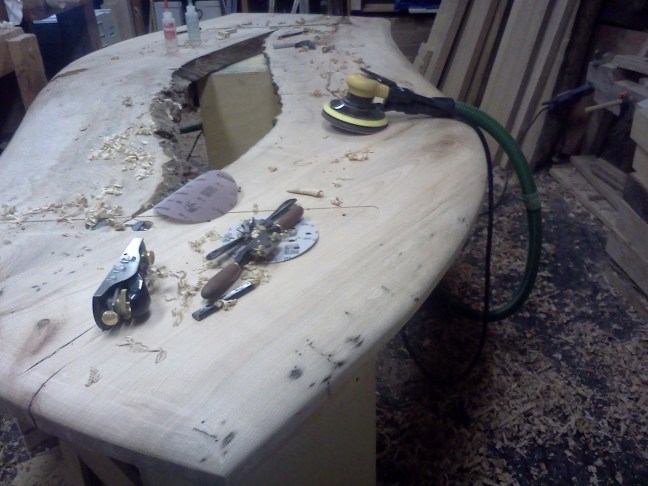

FlairWoodworks I’m using my random orbit sander with the foam interface pad and 80-grit to blend the surfaces. #flairww -1:33 PM Jun 3rd, 2012

FlairWoodworks Make no mistake – it takes considerable effort to get a curve just the way I want it. Flat spots are difficult to remove. #flairww -2:03 PM Jun 3rd, 2012

FlairWoodworks I’ve finished smoothing the first long edge. Hopefully the next three will go more quickly.#flairww -2:21 PM Jun 3rd, 2012

FlairWoodworks I finished smoothing one end. I’m working on the second long edge, trying to eliminate a flat spot. #flairww -2:40 PM Jun 3rd, 2012

FlairWoodworks Just this one section remains to be smoothed. The epoxy is dry so I’ll start that now. #flairww -3:09 PM Jun 3rd, 2012

FlairWoodworks Upon closer examination, the 5-minute epoxy is still a little soft, so I’ll break for lunch. #flairww -3:14 PM Jun 3rd, 2012

FlairWoodworks Before leaving for lunch, I mixed more epoxy to finish filling the void. I used duct tape to make a dam. #flairww -3:23 PM Jun 3rd, 2012

FlairWoodworks Lunch is done and gone. I wonder if the epoxy is cured yet… #flairww -4:22 PM Jun 3rd, 2012

FlairWoodworks The epoxy is not fully hardened yet. The duct tape dam worked perfectly! #flairww -4:23 PM Jun 3rd, 2012

FlairWoodworks I was able to peel back the duct tape easily, leaving behind a smooth surface. #flairww -4:25 PM Jun 3rd, 2012

FlairWoodworks While the epoxy is curing, I’ll sand the newly-profiled edges with 120-grit paper. #flairww -4:33 PM Jun 3rd, 2012

BCcraftmaster @FlairWoodworks do you use a shop vac from the underside to help pull the epoxy into the void? (@WoodWhisperer tip) -4:36 PM Jun 3rd, 2012

FlairWoodworks @BCcraftmaster Nope. Gravity is enough and the glue is thin too. I don’t need full penetration and it’s not a crack that goes through the slab. -4:37 PM Jun 3rd, 2012

Carvingsbysean @FlairWoodworks Chris that is really starting to look awesome! How is your day my friend?

FlairWoodworks @Carvingsbysean Progress is slow but steady so I’m happy. I also had a good lunch so that helps too. How’s your Sunday going? #flairww -4:51 PM Jun 3rd, 2012

Carvingsbysean @FlairWoodworks Pretty good :) want to get some carving done tonight. -4:54 PM Jun 3rd, 2012

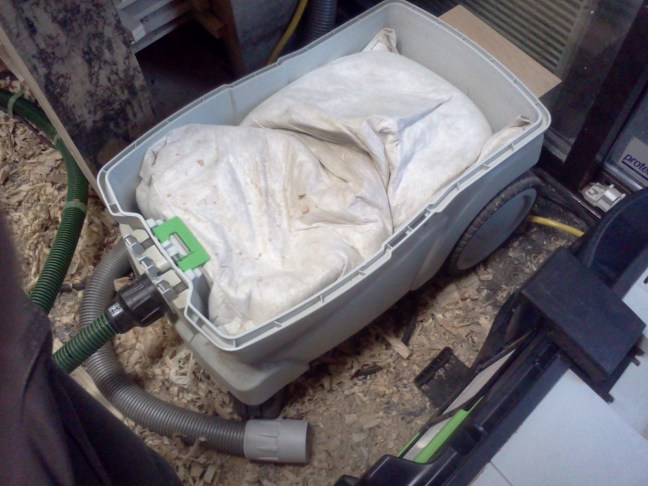

FlairWoodworks Suction from my dust extractor seems lower than usual. I’ll check the bag. #flairww -5:19 PM Jun 3rd, 2012

FlairWoodworks It’s not completely full, but pretty close. I’ll empty it. #flairww -5:21 PM Jun 3rd, 2012

BCcraftmaster @FlairWoodworks leave [the cracks] be. As long as you don’t think they will spread… -5:23 PM Jun 3rd, 2012

BCcraftmaster @FlairWoodworks can you reuse Festool bags or are they disposable? -5:24 PM Jun 3rd, 2012

Carvingsbysean @FlairWoodworks I keep my wood shavings and then throw them on my wifes flower gardens. Makes great mulch -5:25 PM Jun 3rd, 2012

Carvingsbysean @FlairWoodworks You can always let friends or family know you have it, hehe they will I am sure come and collect it eagerly :) -5:30 PM Jun 3rd, 2012

FlairWoodworks @BCcraftmaster You can buy reusable Festool bags but I just use (and reuse) the disposable ones. #flairww -5:33 PM Jun 3rd, 2012

BCcraftmaster @FlairWoodworks what do you use to “re-close” them? I use duct tape. (Tip courtesy of @TomsWorkbench) -5:35 PM Jun 3rd, 2012

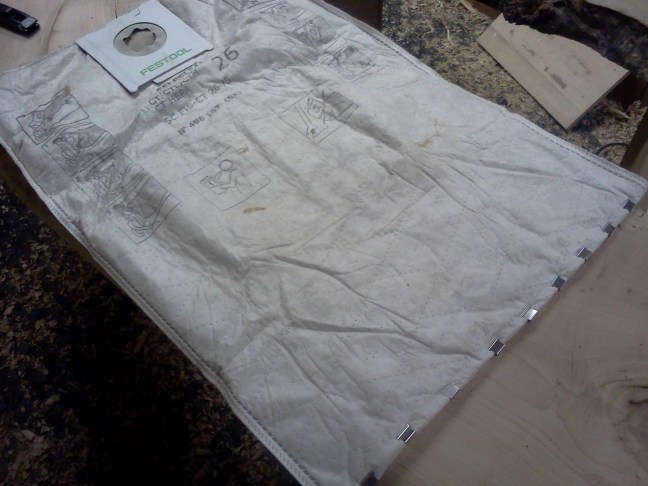

FlairWoodworks @BCcraftmaster I use little metal clips similar to binder clips. #flairww -5:40 PM Jun 3rd, 2012

FlairWoodworks I replaced the dust extractor bag and the suction has been restored. #flairww -5:42 PM Jun 3rd, 2012

BCcraftmaster @FlairWoodworks where did you find them? Office supply store? -5:42 PM Jun 3rd, 2012

FlairWoodworks @BCcraftmaster I got them from Garrett Wade. I looked on their site but couldn’t find it. #flairww -5:43 PM Jun 3rd, 2012

FlairWoodworks @BCcraftmaster Here’s a link from another supplier. #flairww -5:44 PM Jun 3rd, 2012

FlairWoodworks While I wait for the epoxy to cure and ponder if I should fill the cracks, I’m going to go do something else. #flairww-5:50 PM Jun 3rd, 2012

FlairWoodworks I installed a Wixey digital readout on my thickness planer while waiting for the epoxy to cure.#flairww -6:44 PM Jun 3rd, 2012

FlairWoodworks The epoxy is still a little soft so I’ll continue pondering what to do with the cracks and voids. #flairww -6:44 PM Jun 3rd, 2012

roncbailey @FlairWoodworks black tinted epoxy for the voids. I’ve been doing a mesquite headboard with that technique. picture when clamps are off

FlairWoodworks @roncbailey How long until the clamps can be removed? #flairww -6:51 PM Jun 3rd, 2012

BCcraftmaster @FlairWoodworks instead of hiding [the voids], is there a way you can accentuate them? -6:59 PM Jun 3rd, 2012

FlairWoodworks @BCcraftmaster They are not being hid in any way. I just need to stabilize them. That’s all. #flairww -7:00 PM Jun 3rd, 2012

TomsWorkbench @BCcraftmaster @FlairWoodworks If it moves and it’s not supposed to… duct tape. If it doesn’t and it should, WD-40. -7:01PM Jun 3rd, 2012

FlairWoodworks @TomsWorkbench Oh, Tom – you’re so helpful. #flairww -7:02 PM Jun 3rd, 2012

TomsWorkbench @FlairWoodworks Someone has to be! ;-) -7:02 PM Jun 3rd, 2012

FlairWoodworks @TomsWorkbench Do you think this is good enough? ;) #flairww -7:05 PM Jun 3rd, 2012

TomsWorkbench @FlairWoodworks Good enough? Dude, that’s INSPIRED! – 7:06 PM Jun 3rd, 2012

BCcraftmaster @FlairWoodworks @TomsWorkbench just write “fixed” in magic marker on the duct tape and call it a day! -7:11 Jun PM 3rd, 2012

roncbailey @FlairWoodworks overnight. But here is a shot of a leg blank -7:14 PM Jun 3rd, 2012

roncbailey @FlairWoodworks and a sample for finish. The void was all the way through. -7:15 PM Jun 3rd, 2012

tsangell @FlairWoodworks Butterfly dutchman from the same material? Subtle. -7:34 PM Jun 3rd, 2012

FlairWoodworks That’s what I’m thinking. It’s also the underside. #flairww RT @tsangell: @FlairWoodworks Butterfly dutchman from the same material? Subtle. -7:34 PM Jun 3rd, 2012

FlairWoodworks Still waiting for the glue to harden so I swept and vacuumed the floor. #flairww -7:50 PM Jun 3rd, 2012

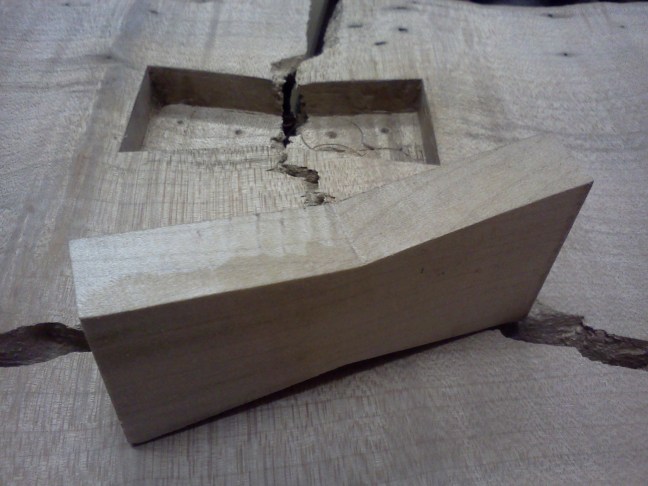

FlairWoodworks I made a jig to cut dovetail keys at the bandsaw. #flairww -8:30 PM Jun 3rd, 2012

FlairWoodworks I resawed the dovetail key into three, each a fat 1/2″. I need the top one. I may not need the others. #flairww -8:39 PM Jun 3rd, 2012

FlairWoodworks I use double-sided tape to secure the dovetail key in place while I score the perimeter with a knife. #flairww -8:41 PM Jun 3rd, 2012

FlairWoodworks I remembered to mark which end goes where and which face is exposed. #flairww -8:54 PM Jun 3rd, 2012

FlairWoodworks I drilled out most of the waste with a forstner bit. #flairww -8:54 PM Jun 3rd, 2012

FlairWoodworks I used a chisel to gradually chop back to the knife lines. #flairww -9:03 PM Jun 3rd, 2012

FlairWoodworks Finally, I used my small router plane to flatten the bottom. #flairww -9:12 PM Jun 3rd, 2012

FlairWoodworks I lightly chamfered the underside of the dovetail key with a chisel. I’m ready to install it now. #flairww -9:14 PM Jun 3rd, 2012

FlairWoodworks Now I get to wait for more glue to dry. #flairww -9:25 PM Jun 3rd, 2012

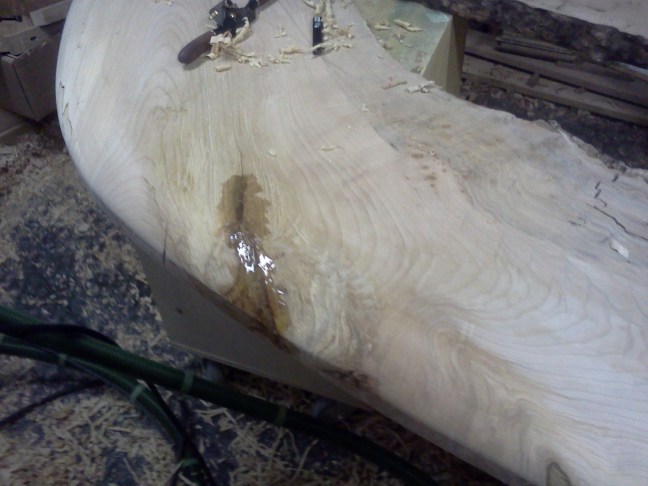

FlairWoodworks The epoxy is finally hard. I’ll finish the edge now. #flairww -9:37 PM Jun 3rd, 2012

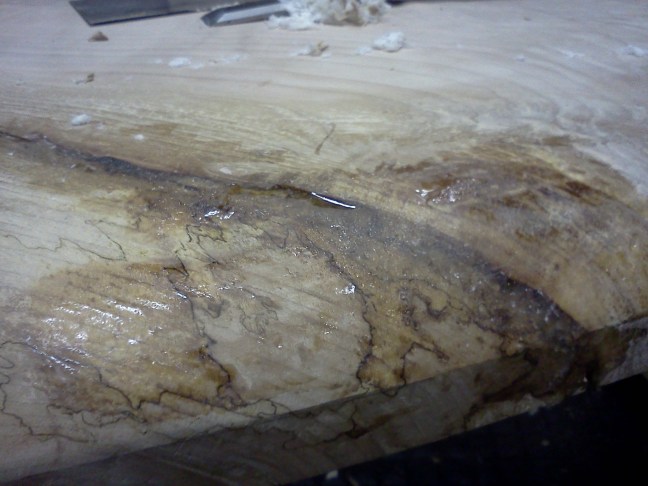

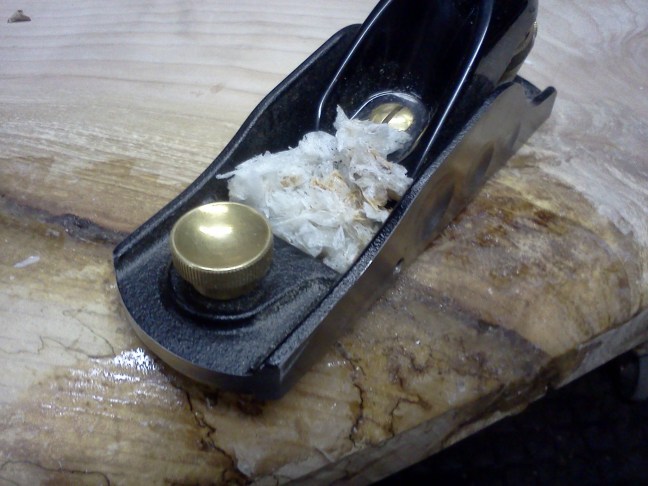

FlairWoodworks I used my block plane to remove most of the epoxy on the surface. #flairww -9:40 PM Jun 3rd, 2012

FlairWoodworks After levelling the epoxy, I’ll polish the surface with my sander. #flairww -9:43 PM Jun 3rd, 2012

FlairWoodworks The two small shiny spots are low areas that have not been touched. Just a little more sanding is required. #flairww -9:47 PM Jun 3rd, 2012

FlairWoodworks Since it’s nearly 10pm, I’m going to stop work in the shop at this point. Thanks for following along with me! #flairww-9:51 PM Jun 3rd, 2012

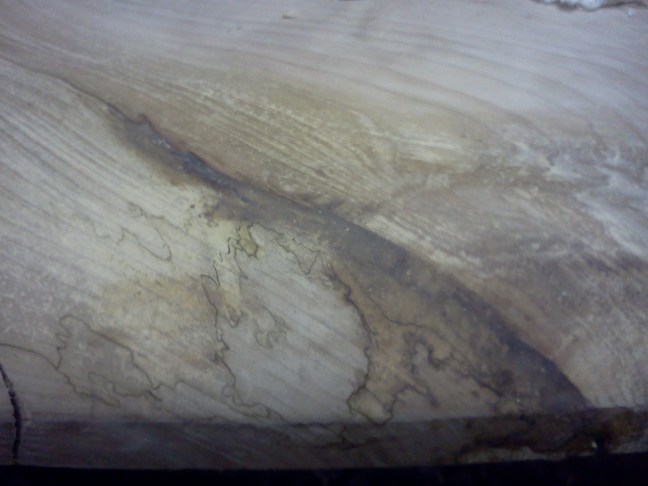

FlairWoodworks This looks great. I’m very happy with this section. #flairww -9:52 PM Jun 3rd, 2012

Gsharptools @FlairWoodworks looks a great idea [for the dovetail key jig]. Could you spare more detail as that’s one of my next jobs. 500yr old oak dried/split on my table top:-( -3:28 AM Jun 4, 2012

FlairWoodworks @Gsharptools For the cutout, the long angled cut is to the angle of the dovetail and the bottom cut is square to it. That’s all! -9:39 AM Jun 4, 2012

FlairWoodworks @Gsharptools Then, just mark the midpoint in length and saw to that point, flipping and turning the key to make all four cuts. -9:40 AM Jun 4, 2012

Only a little more work remains before I can flip over the table top and finish the top surface!
