Insanity 2: The Carcase

I attribute my success to my relentless push to try to fail.  Insanity 2 is about trying to design something which I cannot create.

Since my last blog update on Insanity 2, I laminated two curved sides and a curved bottom.  Then I was faced with the task of joining them together.  Although the four sides of the cabinet were curved like potato chips, cutting the joinery by hand wasn’t any more difficult than any other situation.  However, layout was exceedingly difficult and I took my time.

First, I coped the ends of the sides to fit tightly between the top and bottom panels.  After that, I used a combination square to draw a line 5/8″ from the coped edge.  One challenge I faced was using the square, with a large, flat reference surface, to mark a line parallel to a curved surface.  This wasn’t ideal, but I did my best.

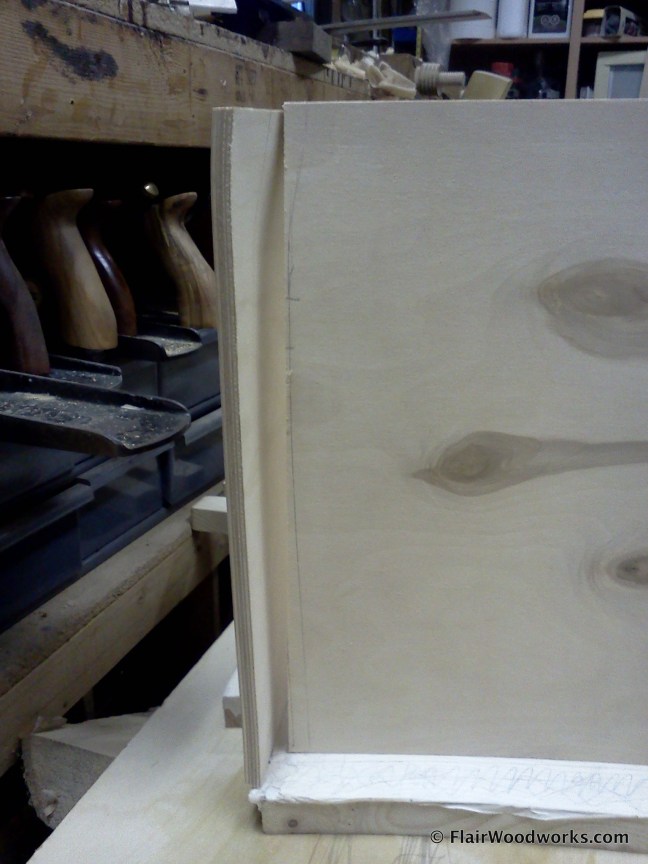

Coping

My next challenge was laying out the fingers.  If the end were straight and face were flat, I would just use a square to extend layout lines along the edge and face.  But since neither were flat, I had to modify my techniques.  I clamped the side panel in my wooden twin screw vise, approximately level.  Then, I set a square on the front vise jaw and marked the face of the board with the vertical leg of the square.

To mark guide lines on the end of the board, I used the slot down the centre of my Veritas Large Saddle Square for the panels with flatter faces.  For other panels, I clamped a straight edge to the board and referenced the square off of it.

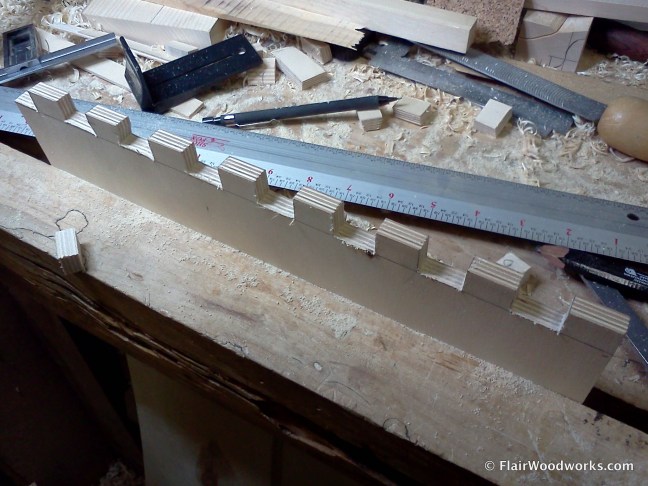

Fingers

The first corner joint was an adventure.  The second went much better and the last two were a piece of cake.

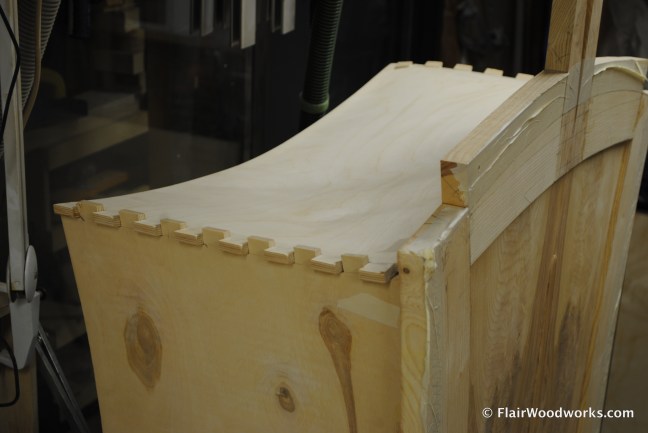

Insanity Cabinet Top

I dry-fit the cabinet and sat it on my bench.  I clamped the doors in the vise to get an idea of what it will look like together.

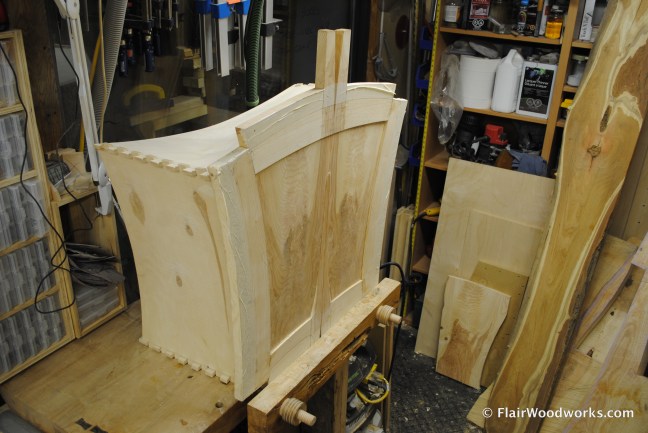

Insanity Cabinet High

I left the fingers long to make assembly, disassembly, and clamping easier.

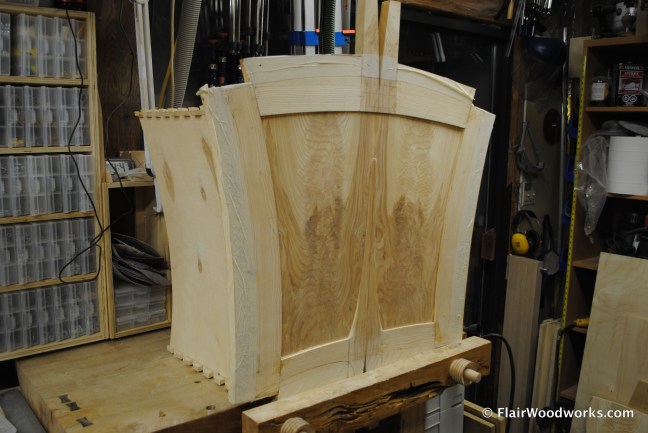

Insanity Cabinet Front

My next steps, the order of which is to be determined, are to figure out how to install the back panel, design the shelves, and glue-up the cabinet with the back and shelves at the same time, if necessary.
