Maple Trestle Table, Session 2 – Playing with Slabs

On the morning of Sunday, April 15th, Morton and I exchanged ideas about trestle tables, spurred on by a recent sketch of a table on which he was working.  That got me yearning to build a trestle table.

I documented my progress live on Twitter which was useful because each update had a time stamp so followers could see the rate at which I progressed.  Here is a link to the previous session.

Session 1 – Flat Boards are Boring

(If you are not familiar with the format used on Twitter, every update, or “tweet” below starts with a username, being the author of that tweet.  Sometimes, you see two or more usernames in a tweet.  The second (and third, etc) usernames are preceded by a @ symbol and are people to whom the author is talking.  The other symbol you see is #, which serves as a category.  I try to remember to categorize all my tweets pertaining to this project under #flairww.)

FlairWoodworks I like the split but it’s best shown on the side where the lower half protrudes further. #flairww -11:18 AM Apr 16th, 2012

FlairWoodworks The split is barely noticeable on this side. I’m going to change that by reducing the thickness of the top. #flairww -11:21 AM Apr 16th, 2012

cobwobbler @FlairWoodworks why do defects look so cool? -11:23 AM Apr 16th, 2012

FlairWoodworks I’m going to use mu angle grinder with an Arbortech wood-carving wheel. #flairww -11:23 AM Apr 16th, 2012

FlairWoodworks Because they are unique! RT @cobwobbler: @FlairWoodworks why do defects look so cool? -11:26 AM Apr 16th, 2012

FlairWoodworks I would normally do the outside but it’s raining today. I put up tarps to contain the mess. #flairww -11:26 AM Apr 16th, 2012

FlairWoodworks I wear tight-fitting gloves, goggles, ear protection and a dust mask when power carving. #flairww -11:27 AM Apr 16th, 2012

FlairWoodworks Here you can see the effect that I’m going for. #flairww -11:40 AM Apr 16th, 2012

Morton @FlairWoodworks Tarp doesn’t look like it’s doing much ;) -11:48 AM Apr 16th, 2012

FlairWoodworks The shape is established. Now for sanding. #flairww -11:54 AM Apr 16th, 2012

FlairWoodworks Here’s the pile of shavings I produced. #flairww -11:57 AM Apr 16th, 2012

FlairWoodworks Notice that they are shavings, not dust. #flairww -11:58 AM Apr 16th, 2012

FlairWoodworks They actually worked perfectly! RT @Morton: @FlairWoodworks Tarp doesn’t look like it’s doing much ;) -11:59 AM Apr 16th, 2012

BillGriggs @FlairWoodworks Clean it up with a Dust Deputy. -12:01 PM Apr 16th, 2012

FlairWoodworks Nah. One scoop with the dust pan and it’s gone. RT @BillGriggs: @FlairWoodworks Clean it up with a Dust Deputy. -12:03 PM Apr 16th, 2012

FlairWoodworks I put the round blade of my convex palm plane in my flat palm plane to quickly even the surface. #flairww -12:08 PM Apr 16th, 2012

FlairWoodworks To work a concave surface, either a short-soled plane works well. For more severe concave areas, I’d use the round plane. #flairww -12:09 PM Apr 16th, 2012

FlairWoodworks A plane works more quickly than a sander and does a better job of fairing the curve. #flairww -12:12 PM Apr 16th, 2012

FlairWoodworks With a sharp blade set for a fine cut, the plane even handles knots with ease. #flairww -12:19 PM Apr 16th, 2012

FlairWoodworks I have no problem working to within 1/16″ with the angle grinder which means less cleanup later. #flairww -12:22 PM Apr 16th, 2012

FlairWoodworks I follow up with 80-grit on the sander to further refine the surface and remove any tearout. #flairww -12:32 PM Apr 16th, 2012

FlairWoodworks It doesn’t look right. More shaping is required. #flairww -12:49 PM Apr 16th, 2012

BCcraftmaster @FlairWoodworks I like your saw horse set up. -12:50 PM Apr 16th, 2012

FlairWoodworksI can’t say enough about them. They are so versatile. RT @BCcraftmaster: @FlairWoodworks I like your saw horse set up. -1:00 PM Apr 16, 2012

FlairWoodworks My palm plane is too short to remove this hump so I’m switching to a longer plane. #flairww -1:17 PM Apr 16th, 2012

FlairWoodworks Perfect! #flairww -1:20 PM Apr 16th, 2012

FlairWoodworks If it feels fair, it’s fair. #flairww -1:37 PM Apr 16th, 2012

FlairWoodworks I use a thin-bladed knife to clear loose material out of the cracks. #flairww -1:39 PM Apr 16th, 2012

FlairWoodworks I broke off the end of a hacksaw blade to clean out the cracks. It’s longer and more flexible than my knife. #flairww -1:48 PM Apr 16th, 2012

FlairWoodworks I’m using this wooden block plane. It’s less fatiguing to use than metal planes, especially one-handed. #flairww -2:00 PM Apr 16th, 2012

FlairWoodworks It was the first plane I’d ever made. It works well, but the body needs some shaping. #flairww -2:01 PM Apr 16th, 2012

FlairWoodworks You should never hesitate to modify your tools if it makes them work better for you. #flairww -2:09 PM Apr 16th, 2012

FlairWoodworks I also rounded over one edge of the sole where my fingers curl over. #flairww -2:10 PM Apr 16th, 2012

CashFromCraft RT @FlairWoodworks: You should never hesitate to modify your tools if it makes them work better for you. #flairww -2:11 PM Apr 16th, 2012

FlairWoodworks That feels so nice! #flairww -2:11 PM Apr 16th, 2012

CashFromCraft @FlairWoodworks especially shop made tools! – 2:11 PM Apr 16th, 2012

FlairWoodworks Especially! But by no means only. RT @CashFromCraft: @FlairWoodworks especially shop made tools! – 2:12 PM Apr 16th, 2012

FlairWoodworks I used my block plane to begin rounding over the edges. I’m using my sander with foam interface pad to finish. #flairww -2:47 PM Apr 16th, 2012

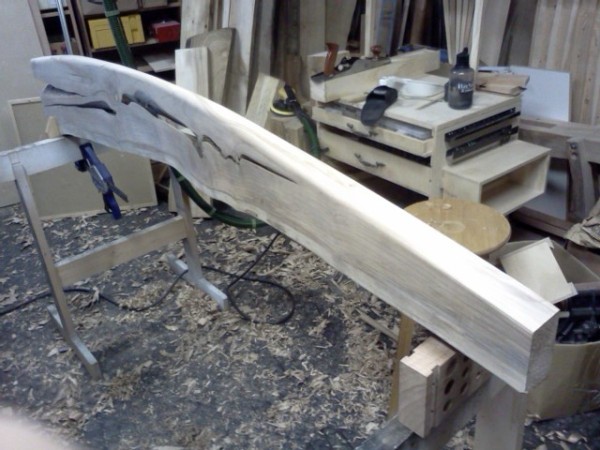

FlairWoodworks The stretcher is done… at least for now. #flairww-3:04 PM Apr 16th, 2012

FlairWoodworks And here’s a look at the other side. #flairww -3:04 PM Apr 16th, 2012

FlairWoodworks Time for a lunch break. #flairww -3:05 PM Apr 16th, 2012

FlairWoodworks Any comments or questions so far? #flairww -3:06 PM Apr 16th, 2012

Tumblewood They are tools, after all!! RT @FlairWoodworks: You should never hesitate to modify your tools if it makes them work better for you. #flairww

FlairWoodworks Now that lunch is finished, I’m looking for materials for the rest of this table now that the stretcher is done. #flairww -4:54 PM Apr 16th, 2012

FlairWoodworks Playing with bookmatches for the top (like @Mansfinefurn). I have three slabs with which to work. #flairww -5:21 PM Apr 16th, 2012

FlairWoodworks Here’s one idea. All the outside edges are cut ad the inside edges are live. #flairww -5:37 PM Apr 16th, 2012

FlairWoodworks I’d probably cover the gap in the centre with glass. #flairww-5:39 PM Apr 16th, 2012

FlairWoodworks Yikes – where’d all the space I had go? #flairww -6:07 PM Apr 16th, 2012

FlairWoodworks Three more pieces of maple for other table parts. #flairww -6:16 PM Apr 16th, 2012

MansFineFurn @FlairWoodworks I won’t ask where you had to stand to get that pic -6:31 PM Apr 16th, 2012

FlairWoodworks Not on the roof! RT @MansFineFurn: @FlairWoodworks I won’t ask where you had to stand to get that pic -6:34 PM Apr 16th, 2012

FlairWoodworks And I begins… #flairww -6:21 PM Apr 16th, 2012

paulchinetti  Digging that! @FlairWoodworks: Here’s one idea. All the outside edges are cut ad the inside edges are live. #flairww -6:43 PM Apr 16th, 2012

FlairWoodworks @paulchinetti Thanks for the feedback! That’s what I’m going with for now. #flairww -6:45 PM Apr 16th, 2012

FlairWoodworks Does anybody know if there is a term form this kind or arrangement? It’s not a bookmatch or slipmatch. #flairww -6:56 PM Apr 16th, 2012

Brygidocious @FlairWoodworks kiss match? -6:58

FlairWoodworks I think I know what you want to say. RT @Brygidocious: @FlairWoodworks kiss match? -6:58

Brygidocious @FlairWoodworks haha shush! i remember seeing the term “kiss match” in my IP [Inside Passage School of Fine Woodworking] handout, but it was never explained -6:59

FlairWoodworks Tip: bring a water bottle to the shop and take a sip whenever you take a pause. #flairww -6:59 PM Apr 16th, 2012

FlairWoodworks @Brygidocious Really? I’ve never heard the term. -7:01

Brygidocious @FlairWoodworks its some skull and bones krenov talk that no one knows outside of those circles… -7:02 PM Apr 16th, 2012

Brygidocious @FlairWoodworks i think its a slip match, then flip one sheet end for end – 7:03 PM Apr 16th, 2012

FlairWoodworks @Brygidocious From my understanding, a slip match is just sliding the slices apart with no rotation or flipping. -7:04 PM Apr 16th, 2012

Brygidocious @FlairWoodworks yeah but this is a kiss match! -7:05 PM Apr 16th, 2012

Brygidocious @FlairWoodworks like a dis… -7:06 PM Apr 16th, 2012

FlairWoodworks Okay – I’m with you now! That “other” name is more exciting though. ;) RT @Brygidocious: @FlairWoodworks like a dis -7:08 PM Apr 16th, 2012

FlairWoodworks Surfacing lumber is a great core and upper-body workout. It even works your legs. #AllInOneGym #flairww -7:26 PM Apr 16th, 2012

FlairWoodworks @Brygidocious Scott Grove calls it spin matching. -7:27 PM Apr 16th, 2012

FlairWoodworks One side of one slab is roughly surfaced. #flairww -7:41 PM Apr 16th, 2012

FlairWoodworks Now I need to find a way to rotate these massive and heavy slabs in my small shop. #flairww -7:42 PM Apr 16th, 2012 PM Apr 16th, 2012

Tumblewood I don’t know, but it’s what i’ve been planning for the conversion table. RT @FlairWoodworks: Does anybody know if there is a term form this kind or arrangement? It’s not a bookmatch or slipmatch. -7:49 PM Apr 16th, 2012

Tumblewood 69 bookmatch? If it wasn’t, it is now!! ;oD RT @FlairWoodworks: Does anybody know if there is a term form this kind or arrangement? It’s not a bookmatch or slipmatch. -7:51 PM Apr 16th, 2012

FlairWoodworks Oh! The cat’s out of the bag now! RT @Tumblewood: 69 bookmatch? If it wasn’t, it is now!! ;oD -7:52 PM Apr 16th, 2012

FlairWoodworks I crosshatched the surface with chalk. Now I’ll start planing.#flairww -8:03 PM Apr 16th, 2012

FlairWoodworks Only traces of blue chalk remain. Dinner time. #flairww -8:35 PM Apr 16th, 2012

I set up my video camera to record in time-lapse the flattening of the two slabs by hand (nothing too exciting).  Watch the video below.  (Duration –  4:18)

Keep going and read about Session 3!

11 thoughts on “Maple Trestle Table, Session 2 – Playing with Slabs

  1. looks like a fun project. I love live wood edges. how long did you let the slabs dry before use? I have some river bottom cyprus i have stacked in the back of the shop…waiting…its been a year so far. counted over 200 growth rings …
    Steve

    • Hi Stephen,

      Oh, this is tons of fun. I don’t recall how long the slabs were drying for, but it’s been over two years.

      How tight are the growth rings of the cypress? How dense is it?

      Chris

      • Chris,
        The wood sat in the woodyard uncut for about a year and we sawed it into 1.5 inch wide pieces from top to the bottom of the log (the gentleman at the saw always cuts like this. He makes barn siding and this is how he is set up). The growth rings look like paper in some areas.but the wood is not as heavy as you might think. The endgrain was cut with a chainsaw so we could get it in the saw. I cut one piece with a curcular saw so I could see growth rings and counted as much as 100 inone board. really amazing. don’t know how long it was inthe water but the ends were well worn bu the water. I made sure those ends stayed intact on that section when we cut them.
        Steve

  2. Pingback: Maple Trestle Table, Session 1 | Flair Woodworks

  3. Pingback: Maple Trestle Table, Session 3 | Flair Woodworks

  4. Pingback: Maple Trestle Table, Session 4 | Flair Woodworks

  5. Bet you had a nice workout trying to maneuver those slabs to decide their layout :)

    Beautiful slabs and I like the layout you chose.

  6. Pingback: Maple Trestle Table, Session 5 | Flair Woodworks
